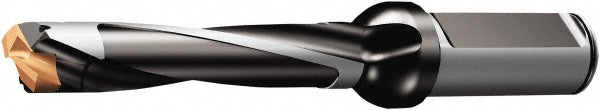

Indexable Drilling - Sandvik Coromant 6035702
MFR# 6035702Series CoroDrill 870
$552.47List $576.72
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035702 indexable drilling. Series CoroDrill 870.
Specifications
Body length3.5433in
Compatible insert style870-1690-16-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.0717
Insert seat size16
Maximum drill depth3.4465
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.6689
Minimum drill diameter0.6299
Overall length6.1417in
Shank length1.9685in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
