Sandvik Coromant
Indexable Drilling - Sandvik Coromant 6035714
MFR# 6035714Series CoroDrill 870
$582.47List $608.04
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

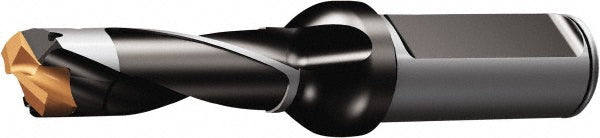

The Sandvik Coromant 6035714 indexable drilling. Series CoroDrill 870.
Specifications
Body length2.3228in
Compatible insert style870-1790-17-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.8847
Insert seat size17
Maximum drill depth2.2327
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7083
Minimum drill diameter0.6693
Overall length4.9606in
Shank diameter0.7874
Shank length1.9685in
Shank typeStraight-Cylindrical
Toolholder style870 L-3
Tool materialSteel
