Sandvik Coromant

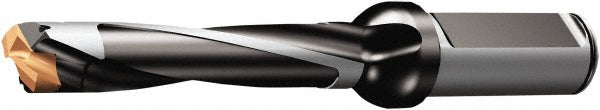

Indexable Drilling - Sandvik Coromant 6035715
MFR# 6035715Series CoroDrill 870
$600.81List $638.28
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035715 indexable drilling. Series CoroDrill 870.
Specifications
Body length3.7402in
Compatible insert style870-1790-17-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.3020
Insert seat size17
Maximum drill depth3.6492
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7083
Minimum drill diameter0.6693
Overall length6.3780in
Shank diameter0.7874
Shank length1.9685in
Shank typeStraight-Cylindrical
Toolholder style870 L-5
Tool materialSteel
