Sandvik Coromant

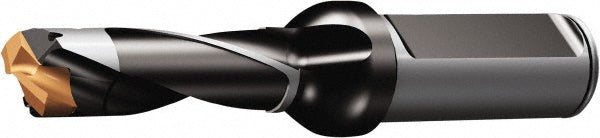

Indexable Drilling - Sandvik Coromant 6035731
MFR# 6035731Series CoroDrill 870
$545.91List $579.96
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035731 indexable drilling. Series CoroDrill 870.
Specifications
Body length2.4410in
Compatible insert style870-1890-18-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.9972
Insert seat size18
Maximum drill depth2.3567
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7476
Minimum drill diameter0.7087
Overall length5.0787in
Shank length1.9685in
Shank typeStraight-Cylindrical
Toolholder style870 LX-3
Tool materialSteel
