Sandvik Coromant

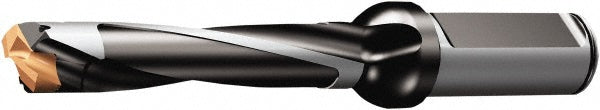

Indexable Drilling - Sandvik Coromant 6035732
MFR# 6035732Series CoroDrill 870
$600.81List $638.28
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035732 indexable drilling. Series CoroDrill 870.
Specifications
Body length3.9370in
Compatible insert style870-1890-18-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.4539
Insert seat size18
Maximum drill depth3.8520
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7476
Minimum drill diameter0.7087
Overall length6.5354in
Shank length1.9685in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
