Sandvik Coromant

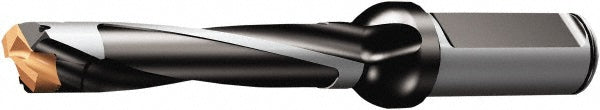

Indexable Drilling - Sandvik Coromant 6035744
MFR# 6035744Series CoroDrill 870
$694.33List $737.64
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6035744 indexable drilling. Series CoroDrill 870.
Specifications
Body length4.1732in
Compatible insert style870-1990-19-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.8417
Insert seat size19
Maximum drill depth4.0547
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7870
Minimum drill diameter0.7480
Overall length7.1654in
Shank diameter0.9843
Shank length2.2047in
Shank typeStraight-Cylindrical
Toolholder style870 L-5
Tool materialSteel
