Sandvik Coromant
Indexable Drilling - Sandvik Coromant 6035762
MFR# 6035762Series CoroDrill 870
$694.33List $737.64
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

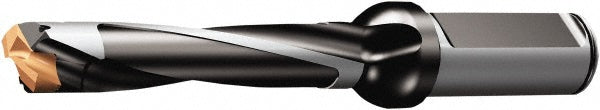

The Sandvik Coromant 6035762 indexable drilling. Series CoroDrill 870.
Specifications
Body length4.3701in
Compatible insert style870-2090-20-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.0721
Insert seat size20
Maximum drill depth4.2578
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.8264
Minimum drill diameter0.7847
Overall length7.4016in
Shank length2.2047in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
