Sandvik Coromant
Indexable Drilling - Sandvik Coromant 6239444
MFR# 6239444Series CoroDrill 870
$725.84List $771.12
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

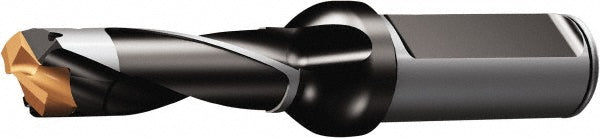

The Sandvik Coromant 6239444 indexable drilling. Series CoroDrill 870.
Specifications
Body length2.8347in
Compatible insert style870-2190-21-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.5307
Insert seat size21
Maximum drill depth2.7284
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.8657
Minimum drill diameter0.8268
Overall length5.8661in
Shank length2.2047in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
