Sandvik Coromant

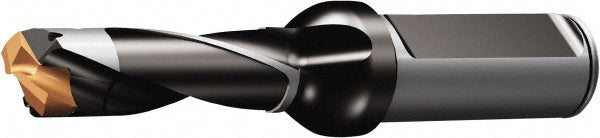

Indexable Drilling - Sandvik Coromant 6239456
MFR# 6239456Series CoroDrill 870
$801.08List $851.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6239456 indexable drilling. Series CoroDrill 870.
Specifications
Body length3.1102in
Compatible insert style870-2390-23-PM
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length3.8343
Insert seat size23
Maximum drill depth2.9760
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.9445
Minimum drill diameter0.9055
Overall length6.1811in
Shank length2.2047in
Shank typeStraight-Cylindrical
Toolholder style870 LX-3
Tool materialSteel
