Sandvik Coromant

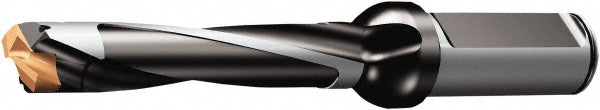

Indexable Drilling - Sandvik Coromant 6239457
MFR# 6239457Series CoroDrill 870
$880.37List $935.28
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6239457 indexable drilling. Series CoroDrill 870.
Specifications
Body length5.0000in
Compatible insert style870-2390-23-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length5.7240
Insert seat size23
Maximum drill depth4.8650
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter0.9445
Minimum drill diameter0.9055
Overall length8.0709in
Shank length2.2047in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
