Sandvik Coromant

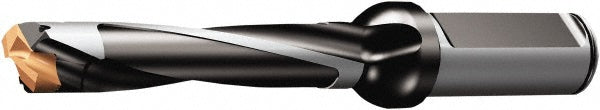

Indexable Drilling - Sandvik Coromant 6239990
MFR# 6239990Series CoroDrill 870
$963.73List $1,023.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6239990 indexable drilling. Series CoroDrill 870.
Specifications
Body length5.3937in
Compatible insert style870-2590-25-PM
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length6.2634
Insert seat size25
Maximum drill depth5.2709
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter1.0232
Minimum drill diameter0.9843
Overall length8.7795in
Shank length2.3622in
Shank typeStraight-Cylindrical
Toolholder style870 LX-5
Tool materialSteel
