Sandvik Coromant

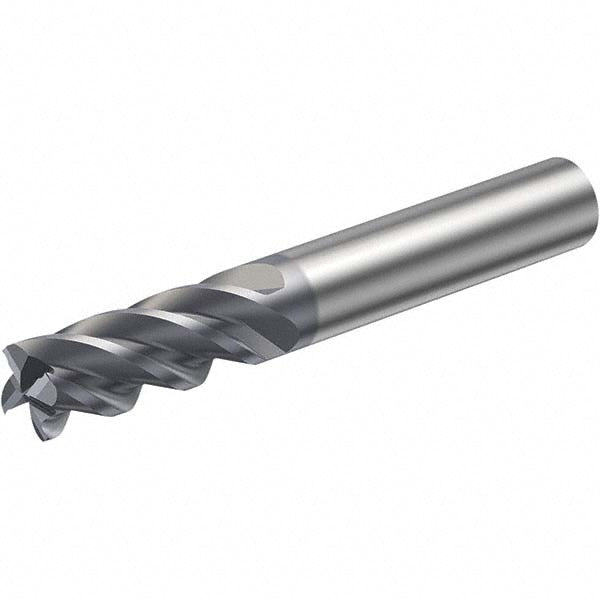

0.4724" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, TiAlN - Sandvik Coromant 6260126

MFR# 6260126Series 2P341

$271.99List $348.84 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Sandvik Coromant 6260126 is a 0.4724 4-flute Solid Carbide corner radius & corner chamfer end mill with a TiAlN finish for longer tool life. Suited for stainless steel, superalloys & titanium. Series 2P341.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut1.0236

Length typeLong

Material removal typeRoughing

Mill diameter0.4724

Mill diameter toleranceh10

Neck diameter0.4724

Number of flutes4

Overall length (mm)83.00

PitchNormal

Primary workpiece materialStainless Steel; Superalloys & Titanium

Reach length3.2677

Shank diameter (mm)12.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
