M.A. Ford.

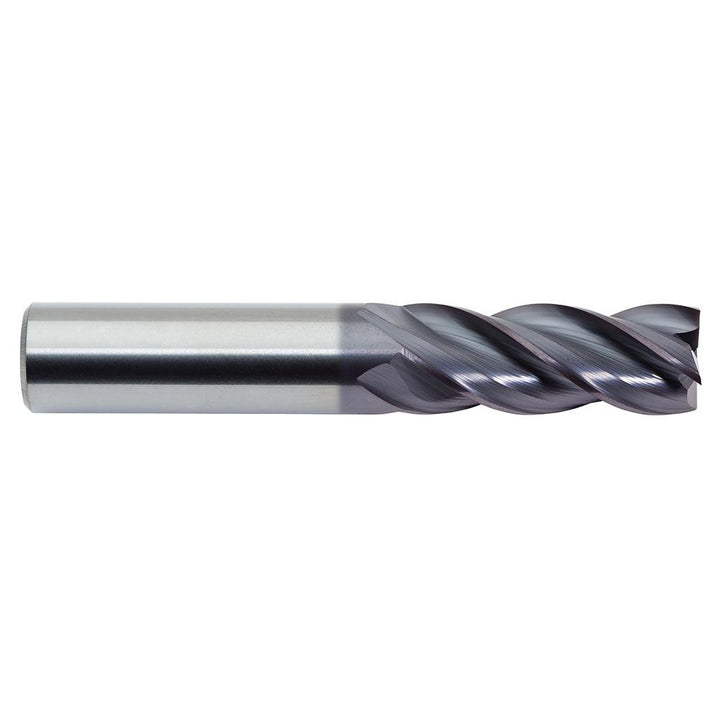

0.4724" 4-Flute Solid Carbide Square End Mill, TiAlN - M.A. Ford. 17747200A

MFR# 17747200ASeries 177

$110.25List $141.41 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The M.A. Ford. 17747200A is a 0.4724 4-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 1.0236 length of cut. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut1.0236

Length of cut range1.0000 - 1.2500

Material gradeMicrograin

Mill diameter0.4724

Mill diameter tolerance+0.000/-0.070 mm

Number of flutes4

Overall length (mm)83

Shank diameter0.4724

Shank diameter tolerance+0/-0.011 mm

Shank typeStraight-Cylindrical

Variable helixYes

Variable indexYes
