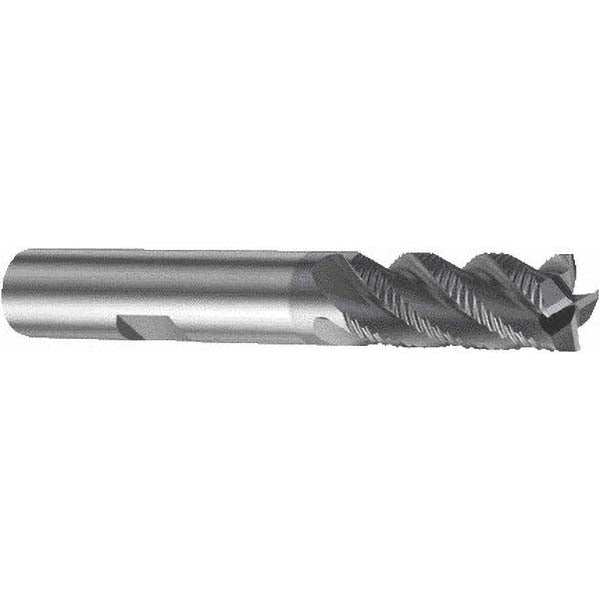

0.4724" 4-Flute Solid Carbide Single End Mill, TiAlN - Sandvik Coromant 5743330

Sandvik Coromant

0.4724" 4-Flute Solid Carbide Single End Mill, TiAlN - Sandvik Coromant 5743330

MFR# 5743330Series CoroMill Plura

$285.46List $366.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5743330 is a 0.4724 4-flute Solid Carbide single end mill with a TiAlN finish for longer tool life. Series CoroMill Plura.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut1.0236
Length typeLong
Maximum helix angle40
Mill diameter0.4724
Mill diameter toleranceh12
Number of flutes4
Shank diameter0.4724
Shank diameter toleranceh6
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
