Sandvik Coromant

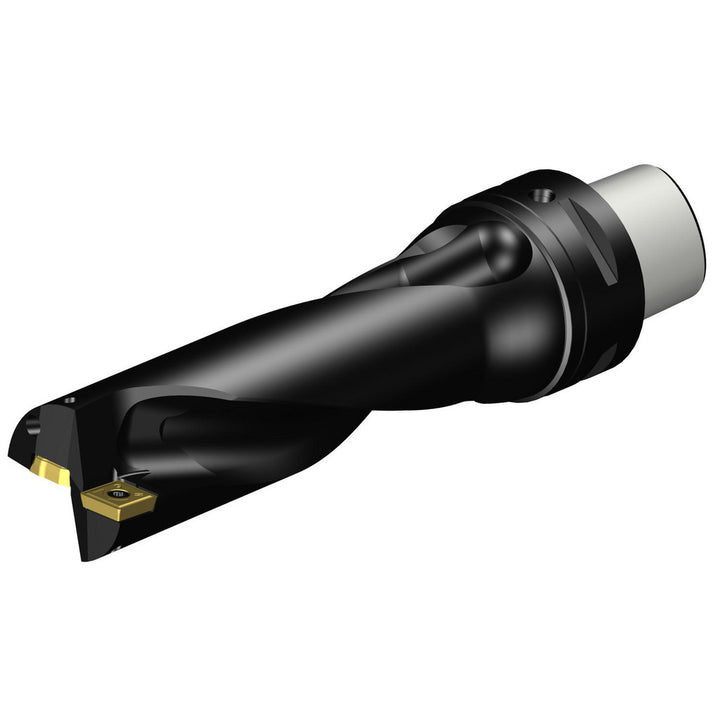

Indexable Drilling - Sandvik Coromant 6328043
MFR# 6328043Series CoroDrill 880
$1,159.93List $1,232.28
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 6328043 indexable drilling. Series CoroDrill 880.
Specifications
Body length6.4878
Collar diameter1.3780
Compatible drill styleA880
Compatible insert size code070406; 0704W06
Compatible insert style880
Coolant entry style code3- Axial Concentric & Radial
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length4.6460
Insert compatibility880-070406H-C-GM; 880-0704W06H-P-GM
Insert lock screw416.1-833
Insert size0.4860; 0.4980
Maximum drill depth4.5272
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter1.5874
Modular connection sizeC5
Number of drill inserts2
Overall length7.6961
Shank diameter1.9685
Shank length1.2083
Shank typeModular Connection
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
