Sandvik Coromant

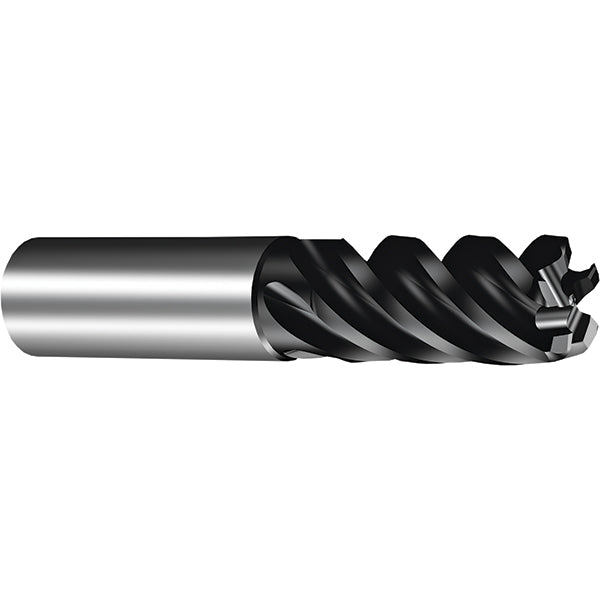

0.2362" 5-Flute Solid Carbide Corner Radius End Mill, TiAlSiN - Sandvik Coromant 7419161

MFR# 7419161Series 2F340

$119.58List $153.36 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes5

MaterialSolid Carbide

CoatingTiAlSiN

Description

The Sandvik Coromant 7419161 is a 0.2362 5-flute Solid Carbide corner radius end mill with a TiAlSiN finish for longer tool life. Suited for superalloys & titanium. Series 2F340.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlSiN

Coolant throughNo

Corner radius0.0196

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut0.0315

Length typeExtended

Material applicationSuperalloys & Titanium

Material removal typeRoughing

Mill diameter0.2362

Mill diameter toleranceh10

Neck diameter0.2362

Number of flutes5

Overall length (mm)57.00

PitchClose

Primary workpiece materialSuperalloys & Titanium

Reach length (mm)20.00

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
