Seco

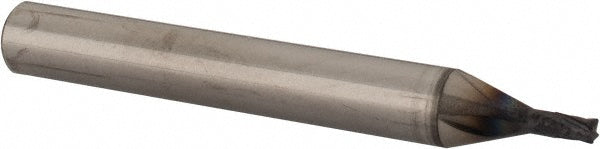

0.0787" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 00019437
MFR# 00019437Series JH120
$160.51List $195.48
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingMEGA-64
Description
The Seco 00019437 is a 0.0787 4-flute Solid Carbide corner radius end mill with a MEGA-64 finish for longer tool life. Suited for hard material. Series JH120.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishMEGA-64
Coolant throughNo
Corner radius0.0079
Corner radius tolerance-0.01 to 0.01 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut0.5000
Length typeShort
Material applicationHard Material
Material removal typeRoughing
Mill diameter0.0787
Mill diameter tolerance-0.02 to -0.03 mm
Neck diameter0.0750
Number of flutes4
Overall length (mm)50.00
Primary workpiece materialHard Material
Reach length (mm)5.00
Shank diameter (mm)6.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
