Seco

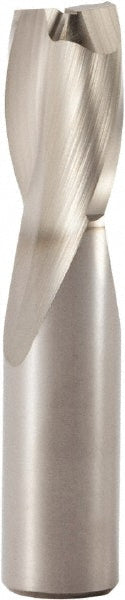

0.4724" 2-Flute Solid Carbide Corner Radius End Mill, HEMI - Seco 00022092

MFR# 00022092Series JH40

$234.40List $290.52 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingHEMI

Description

The Seco 00022092 is a 0.4724 2-flute Solid Carbide corner radius end mill with a HEMI finish for longer tool life. Suited for non-ferrous metal. Series JH40.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHEMI

Coolant throughNo

Corner radius0.0039

Corner radius tolerance-0.10 to 0.10 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleMedium

Length of cut2.0000

Length typeStandard

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter0.4724

Mill diameter tolerance-0.02 to -0.04 mm

Number of flutes2

Overall length (mm)65.00

Primary workpiece materialNon-Ferrous Metal

Shank diameter (mm)12.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
