0.4724" 2-Flute Solid Carbide Square End Mill - SGS 43335

SGS

0.4724" 2-Flute Solid Carbide Square End Mill - SGS 43335

MFR# 43335Series 3XLM

$96.66List $123.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

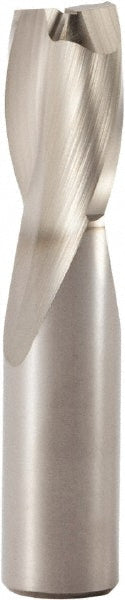

The SGS 43335 is a 0.4724 2-flute Solid Carbide (Micrograin) square end mill. 1.9685 length of cut. Series 3XLM.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut1.9685
Length of cut range1.5000 - 2.0000
Length typeExtra Long
Material gradeMicrograin
Mill diameter0.4724
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes2
Overall length (mm)100
Shank diameter0.4724
Shank diameter tolerance+0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
