Seco

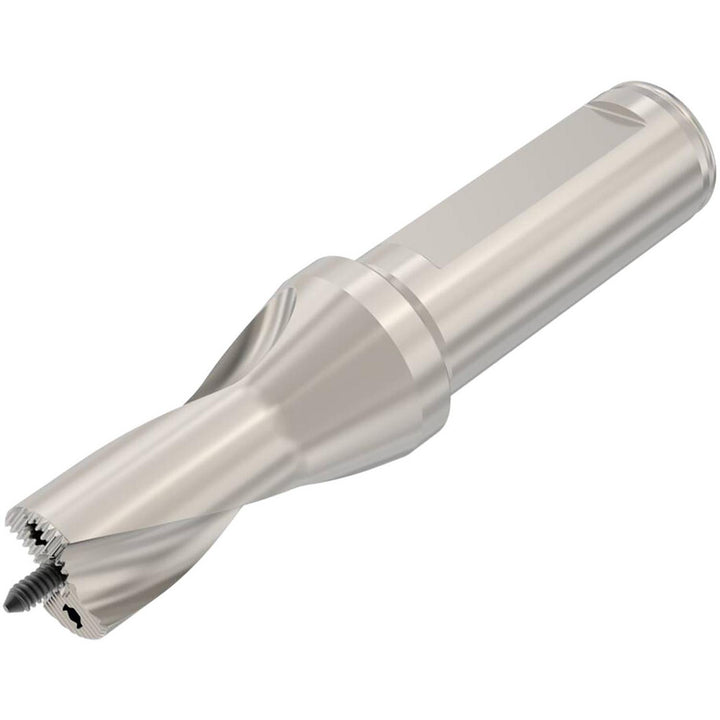

Indexable Drilling - Seco 02445823
MFR# 02445823Series SD101
$391.39List $415.80
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02445823 indexable drilling. Series SD101.
Specifications
Body length2.409
Compatible insert styleSD100
Coolant throughYes
Flute length0.6500
Maximum drill depth1.1800
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.7083
Minimum drill diameter0.6693
Overall length4.61
Shank diameter in3/4
Shank length1.7720
Shank typeWeldon Flat
Toolholder styleSD101
