Seco
Indexable Drilling - Seco 02445832
MFR# 02445832Series SD103
$432.46List $451.44
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

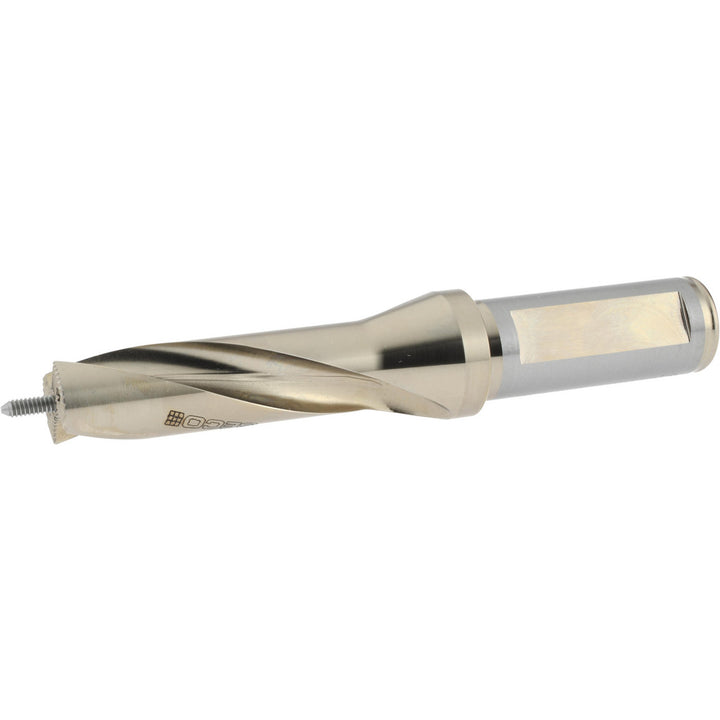

The Seco 02445832 indexable drilling. Series SD103.
Specifications
Body length3.571
Compatible insert styleSD100
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.6650
Maximum drill depth2.3600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7083
Minimum drill diameter0.6693
Overall length5.539
Shank diameter in3/4
Shank length1.9690
Shank typeWeldon Flat
StandardsISO 9766
Toolholder styleSD103
Tool applicationHolemaking
