Seco
Indexable Drilling - Seco 02445836
MFR# 02445836Series CROWNLOC
$498.13List $529.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiAlN
Description

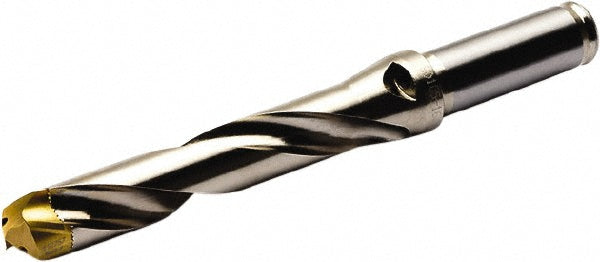

The Seco 02445836 indexable drilling. Series CROWNLOC.
Specifications
Body length3.6770in
Coating finishTiAlN
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length2.8900
Maximum drill depth2.5591
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5114
Minimum drill diameter0.4921
Overall length5.5670in
Shank diameter in5/8in
Shank length1.8900in
Shank typeWeldon Flat
StandardsISO 9766
Toolholder styleSD105
Tool applicationHolemaking
