Seco

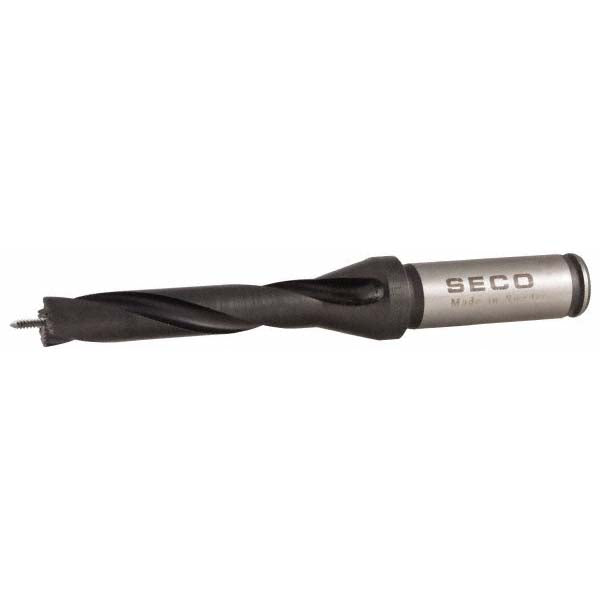

Indexable Drilling - Seco 02445843
MFR# 02445843Series SD105
$605.23List $631.80
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02445843 indexable drilling. Series SD105.
Specifications
Body length5.0590in
Compatible insert styleSD100
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length4.3110
Maximum drill depth3.7400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter0.7870
Minimum drill diameter0.7480
Overall length7.0280in
Shank diameter in3/4in
Shank length1.9690in
Shank typeWeldon Flat
StandardsISO 9766
Toolholder styleSD105
Tool applicationHolemaking
