Seco

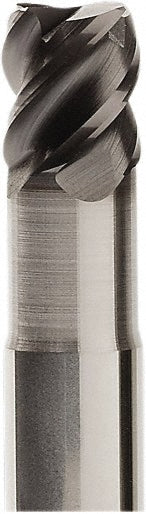

0.3937" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 02587630

MFR# 02587630Series JHP170

$167.31List $207.37 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingMEGA-64

Description

The Seco 02587630 is a 0.3937 4-flute Solid Carbide corner radius end mill with a MEGA-64 finish for longer tool life. Suited for hard material. Series JHP170.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishMEGA-64

Coolant throughNo

Corner radius0.0394

Corner radius tolerance+0.05000 to -0.05000 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut0.3937

Length typeShort

Material applicationHard Material

Material removal typeRoughing

Mill diameter0.3937

Mill diameter tolerance-0.02/-0.04 mm

Neck diameter (mm)9.40

Number of flutes4

Overall length (mm)65.00

Primary workpiece materialHard Material

Reach length0.8661

Shank diameter (mm)10.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo
