Seco

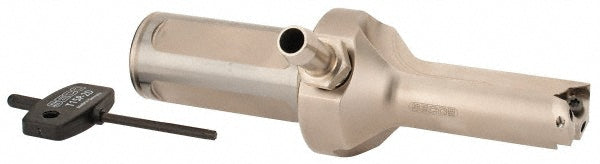

Indexable Drilling - Seco 02602133
MFR# 02602133Series PerfoMAX
$806.54List $906.12
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02602133 indexable drilling. Series PerfoMAX.
Specifications
Body length3.5020
Collar diameter2.1650
Compatible drill styleSD572
Compatible insert size code06T308-86; 50308
Compatible insert styleWCMX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in1-1/16
Flute length2.3210
Insert compatibilityWCMX 06T308-86
Maximum drill depth2.1240
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in1-1/16
Modular connection sizeR7
Neck diameter in2.1650
Number of drill inserts2
Shank diameter in1-1/4
Shank length3.0000
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
