Seco

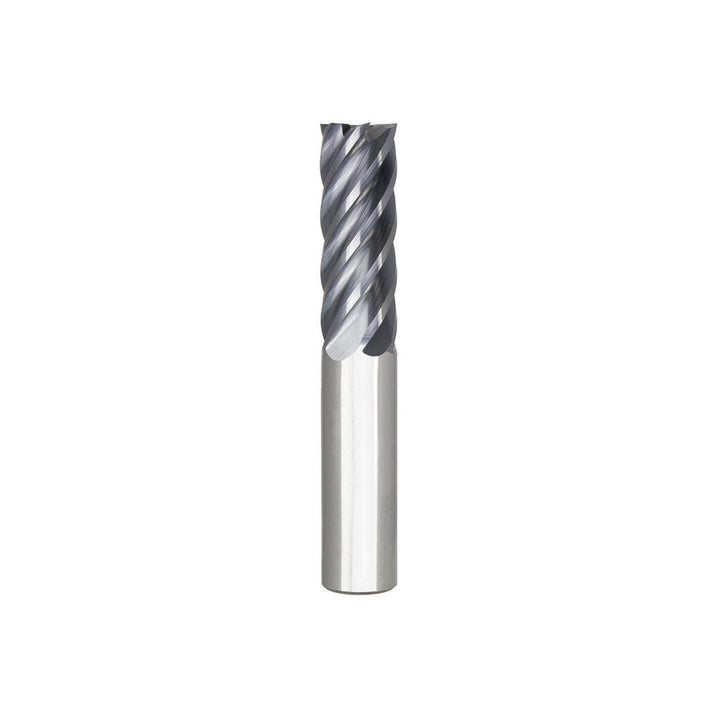

0.6250" 6-Flute Solid Carbide Single End Mill, AlTiN - Seco 03007651

MFR# 03007651Series S638

$208.96List $268.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03007651 is a 0.6250 6-flute Solid Carbide (Micrograin) single end mill with a AlTiN finish for longer tool life. 1-5/8 length of cut. Series S638.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeSingle

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in1-5/8

Length typeStandard

Material gradeMicrograin

Mill diameter0.6250

Mill diameter frac in5/8

Mill diameter tolerance+0.000 to -0.002 in

Number of flutes6

Overall length tolerance+0.060/-0.060 in

Shank diameter in5/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
