Seco

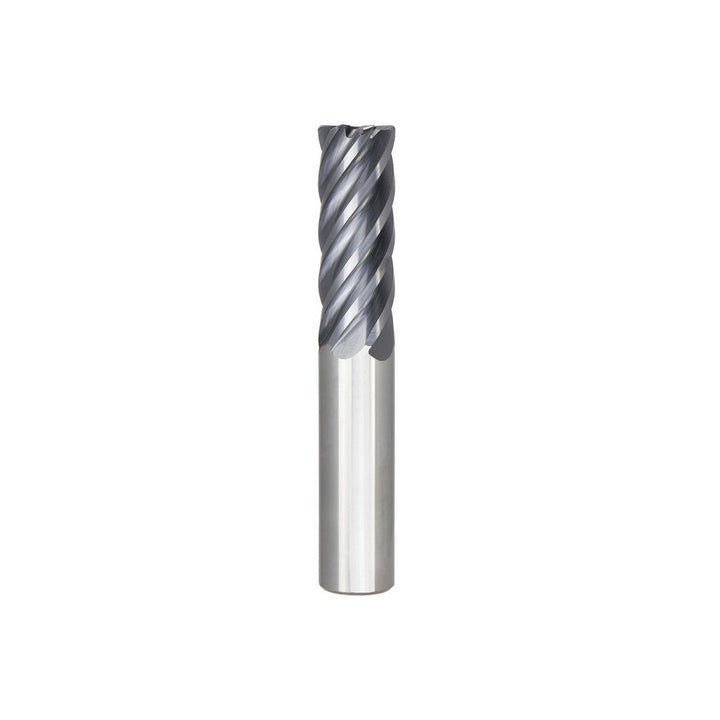

3/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03007660

MFR# 03007660Series S638R

$322.80List $414.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03007660 is a 3/4 6-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-3/4 length of cut, 4 overall length. Series S638R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0600

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-3/4

Length typeStub

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance-0.0020/0.0000 in

Number of flutes6

Overall length in4

Overall length tolerance-0.0600/0.0600 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
