Seco

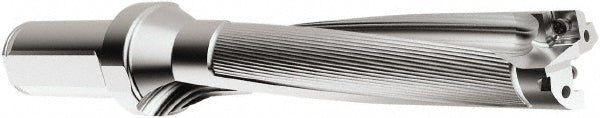

Indexable Drilling - Seco 03079569
MFR# 03079569Series PerfoMAX
$961.31List $1,080.00
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03079569 indexable drilling. Series PerfoMAX.
Specifications
Body length157.00
Collar diameter (mm)42.00
Compatible drill styleSD525
Compatible insert size code0703; 070308
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Drill diameter in1
Flute length (mm)132.00
Insert compatibilitySPGX0703..
Maximum drill depth in5
Maximum drill diameter in1
Modular connection sizeR7
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.3750
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
