Seco

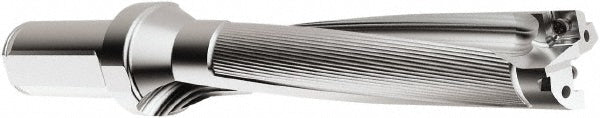

Indexable Drilling - Seco 03079570
MFR# 03079570Series PerfoMAX
$982.38List $1,123.20
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03079570 indexable drilling. Series PerfoMAX.
Specifications
Body length164.87
Collar diameter (mm)42.00
Compatible drill styleSD525
Compatible insert size code070308; 0903
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length (mm)139.87
Insert compatibilitySPGX0903..
Maximum drill depth (mm)134.87
Maximum drill depth range (mm)100.00 to 150.00
Maximum drill diameter (mm)27.49
Modular connection sizeR7
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.3750
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
