Seco

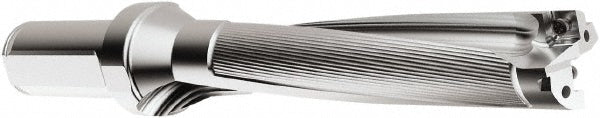

Indexable Drilling - Seco 03079573
MFR# 03079573Series PerfoMAX
$1,039.05List $1,188.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03079573 indexable drilling. Series PerfoMAX.
Specifications
Body length188.75
Collar diameter (mm)50.00
Compatible drill styleSD525
Compatible insert size code09T308; 11T3
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length (mm)163.75
Insert compatibilitySPGX11T3..
Maximum drill depth in6-1/4
Maximum drill diameter in1-1/4
Modular connection sizeR7
Neck diameter in1.9690
Number of drill inserts2
Shank diameter in1-1/2
Shank length (mm)66.70
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
