Seco

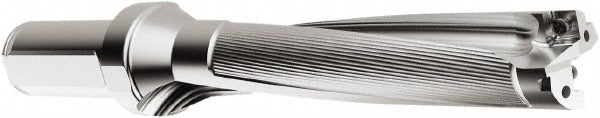

Indexable Drilling - Seco 03079582
MFR# 03079582Series PerfoMAX
$902.90List $1,066.80
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03079582 indexable drilling. Series PerfoMAX.
Specifications
Body length130.00
Collar diameter (mm)35.00
Compatible drill styleSD525
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length (mm)105.00
Insert compatibilitySPGX0602..
Maximum drill depth (mm)100.00
Maximum drill depth range (mm)100.00 to 150.00
Maximum drill diameter (mm)20.92
Number of drill inserts2
Shank diameter (mm)25.00
Shank length (mm)56.00
Shank typeStraight-Cylindrical
Tool materialSteel
