Seco

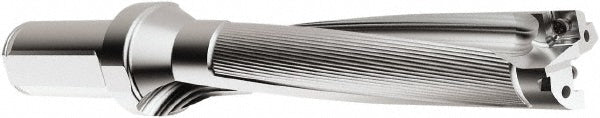

Indexable Drilling - Seco 03079591
MFR# 03079591Series PerfoMAX
$1,039.05List $1,188.00
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03079591 indexable drilling. Series PerfoMAX.
Specifications
Body length175.00
Collar diameter (mm)42.00
Compatible drill styleSD525
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio5xD
Flute length (mm)150.00
Insert compatibilitySPGX0903..
Maximum drill depth (mm)145.00
Maximum drill depth range (mm)100.00 to 150.00
Maximum drill diameter (mm)30.00
Number of drill inserts2
Shank diameter (mm)32.00
Shank length (mm)60.00
Shank typeStraight-Cylindrical
Tool materialSteel
