Seco

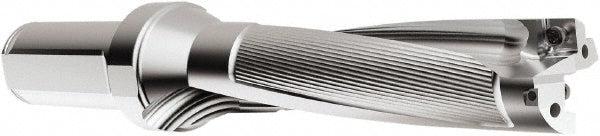

Indexable Drilling - Seco 03080283
MFR# 03080283Series PerfoMAX
$740.56List $846.72
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080283 indexable drilling. Series PerfoMAX.
Specifications
Body length96.55
Collar diameter (mm)35.00
Compatible drill styleSD524
Compatible insert size code0502; 050204
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Drill diameter0.6560
Flute length (mm)71.55
Insert compatibilitySPGX0502..
Maximum drill depth (mm)66.55
Maximum drill depth range (mm)50.00 to 75.00
Maximum drill diameter (mm)17.58
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Shank diameter in1
Shank length2.2500
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
