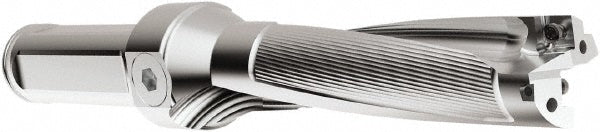

Indexable Drilling - Seco 03080284
MFR# 03080284Series PerfoMAX
$794.99List $893.15
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080284 indexable drilling. Series PerfoMAX.
Specifications
Body length104.85
Collar diameter (mm)35.00
Compatible drill styleSD524
Compatible insert size code0502; 050204
Compatible insert styleSCGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Drill diameter0.6870
Flute length (mm)74.85
Insert compatibilitySPGX0502..
Maximum drill depth in2-3/4
Maximum drill diameter (mm)18.37
Modular connection sizeR7-C
Neck diameter in1.3780
Number of drill inserts2
Shank diameter in1
Shank length2.7500
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
