Seco

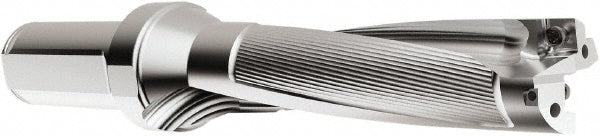

Indexable Drilling - Seco 03080295
MFR# 03080295Series PerfoMAX
$806.68List $922.32
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080295 indexable drilling. Series PerfoMAX.
Specifications
Body length118.90
Collar diameter (mm)35.00
Compatible drill styleSD524
Compatible insert size code060204; 0703
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Drill diameter in7/8
Flute length (mm)93.90
Insert compatibilitySPGX0703..
Maximum drill depth in3-1/2
Maximum drill diameter in7/8
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Shank diameter in1
Shank length2.2500
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
