Seco

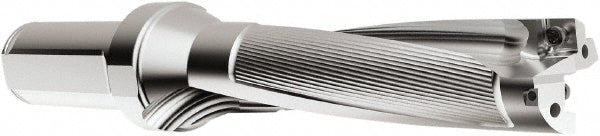

Indexable Drilling - Seco 03080302
MFR# 03080302Series PerfoMAX
$830.29List $949.32
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080302 indexable drilling. Series PerfoMAX.
Specifications
Body length131.60
Collar diameter (mm)42.00
Compatible drill styleSD524
Compatible insert size code0703; 070308
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Drill diameter in1
Flute length (mm)106.60
Insert compatibilitySPGX0703..
Maximum drill depth in4
Maximum drill diameter in1
Modular connection sizeR7
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.3750
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
