Seco

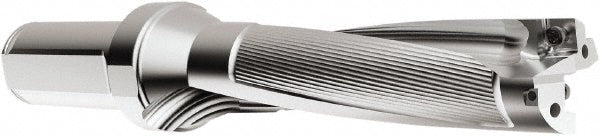

Indexable Drilling - Seco 03080322
MFR# 03080322Series SD524
$1,067.39List $1,220.40
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080322 indexable drilling. Series SD524.
Specifications
Body length7.1810
Collar diameter1.9690
Compatible drill styleSD524
Compatible insert size code12T3; 11T308
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length6.1970
Insert compatibilitySPGX12T3; SCGX11T308
Insert lock screwC03508-T15P
Insert size0.5000; 0.4530
Maximum drill depth in6
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter in1-1/2
Modular connection sizeR7
Neck diameter in1.9690
Number of drill inserts2
Overall length9.8060
Shank diameter in1-1/2
Shank length2.6250
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
