Seco

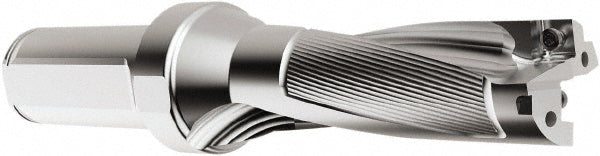

Indexable Drilling - Seco 03080505
MFR# 03080505Series PerfoMAX
$726.39List $830.52
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080505 indexable drilling. Series PerfoMAX.
Specifications
Body length92.99
Collar diameter (mm)35.00
Compatible drill styleSD523
Compatible insert size code0602; 060204
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter0.8270
Flute length (mm)67.99
Insert compatibilitySPGX0602..
Maximum drill depth (mm)62.99
Maximum drill depth range (mm)50.00 to 75.00
Maximum drill diameter (mm)22.01
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Shank diameter in1
Shank length2.2500
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
