Seco

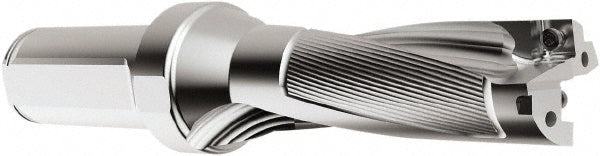

Indexable Drilling - Seco 03080514
MFR# 03080514Series SD523
$754.73List $862.92
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080514 indexable drilling. Series SD523.
Specifications
Body length3.9910
Collar diameter1.3780
Compatible drill styleSD523
Compatible insert size code0703; 070308
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.0070
Insert compatibilitySPGX0703; SCGX070308
Insert lock screwC02507-T08P; C03007-T08P
Insert size0.3125
Maximum drill depth2.8100
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.9770
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Overall length6.2410
Shank diameter in1
Shank length2.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
