Seco

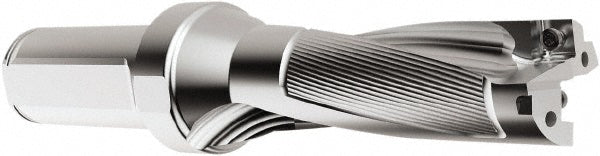

Indexable Drilling - Seco 03080516
MFR# 03080516Series SD523
$754.73List $862.92
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080516 indexable drilling. Series SD523.
Specifications
Body length4.1310
Collar diameter1.6540
Compatible drill styleSD523
Compatible insert size code0703; 070308
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length3.1470
Insert compatibilitySPGX0703; SCGX070308
Insert lock screwC02507-T08P; C03007-T08P
Insert size0.3125
Maximum drill depth2.9500
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter1.0240
Modular connection sizeR7
Neck diameter in1.6540
Number of drill inserts2
Overall length6.5060
Shank diameter in1-1/4
Shank length2.3750
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
