Seco

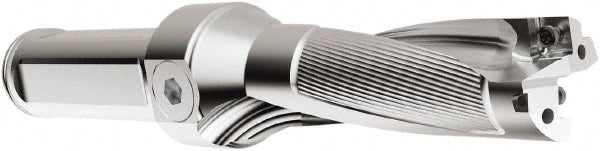

Indexable Drilling - Seco 03080519
MFR# 03080519Series PerfoMAX
$754.73List $862.92
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080519 indexable drilling. Series PerfoMAX.
Specifications
Body length111.20
Collar diameter (mm)42.00
Compatible drill styleSD523
Compatible insert size code0703; 070308
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter in1
Flute length (mm)81.20
Insert compatibilitySPGX0703..
Maximum drill depth in3
Maximum drill diameter in1
Modular connection sizeR7-C
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.7500
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
