Seco
Indexable Drilling - Seco 03080533
MFR# 03080533Series PerfoMAX
$876.59List $1,002.25
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

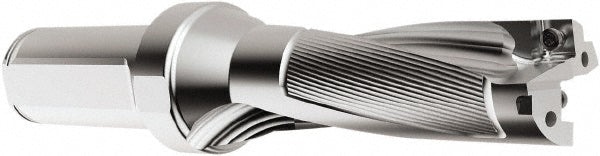

The Seco 03080533 indexable drilling. Series PerfoMAX.
Specifications
Body length125.25
Collar diameter (mm)50.00
Compatible drill styleSD523
Compatible insert size code09T308; 11T3
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Drill diameter in1-1/4
Flute length (mm)100.25
Insert compatibilitySPGX11T3..
Maximum drill depth in3-3/4
Maximum drill diameter in1-1/4
Modular connection sizeR7
Neck diameter in1.9690
Number of drill inserts2
Shank diameter in1-1/2
Shank length (mm)66.68
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
