Seco

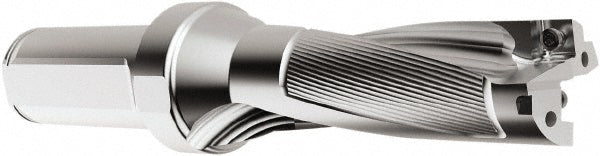

Indexable Drilling - Seco 03080535
MFR# 03080535Series SD523
$929.48List $1,062.72
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080535 indexable drilling. Series SD523.
Specifications
Body length5.1210
Collar diameter1.9690
Compatible drill styleSD523
Compatible insert size code11T3; 09T308
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length4.1370
Insert compatibilitySPGX11T3; SCGX09T308
Insert lock screwC03508-T15P
Insert size0.4530; 0.3750
Maximum drill depth3.9400
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter1.3520
Modular connection sizeR7
Neck diameter in1.9690
Number of drill inserts2
Overall length7.7460
Shank diameter in1-1/2
Shank length2.6250
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
