Seco

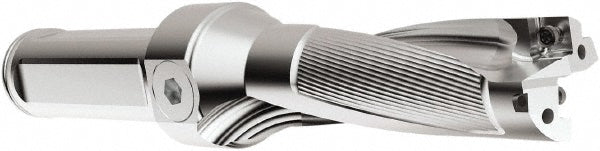

Indexable Drilling - Seco 03080546
MFR# 03080546Series SD523
$963.48List $1,101.60
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080546 indexable drilling. Series SD523.
Specifications
Body length5.8780
Body side coolant hole thread size in1/4
Collar diameter1.9690
Compatible drill styleSD523
Compatible insert size code12T3; 11T308
Compatible insert styleSPGX; SCGX
Coolant entry style code3- Axial Concentric & Radial
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length4.6970
Insert compatibilitySPGX12T3; SCGX11T308
Insert lock screwC03508-T15P
Insert size0.5000; 0.4530
Maximum drill depth in4-1/2
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-1/2
Modular connection sizeR7-C
Neck diameter in1.9690
Number of drill inserts2
Overall length8.6280
Shank diameter in1-1/2
Shank length2.7500
Shank typeFlatted; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
