Seco

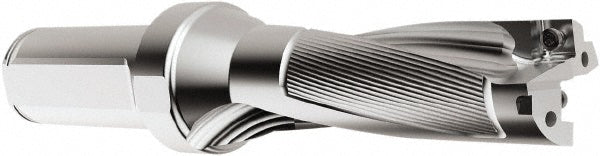

Indexable Drilling - Seco 03080605
MFR# 03080605Series PerfoMAX
$755.63List $891.60
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080605 indexable drilling. Series PerfoMAX.
Specifications
Body length96.00
Collar diameter (mm)35.00
Compatible drill styleSD523
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length (mm)71.00
Insert compatibilitySPGX0703..
Maximum drill depth (mm)66.00
Maximum drill depth range (mm)50.00 to 75.00
Maximum drill diameter (mm)23.00
Number of drill inserts2
Shank diameter (mm)25.00
Shank length (mm)56.00
Shank typeStraight-Cylindrical
Tool materialSteel
