Seco

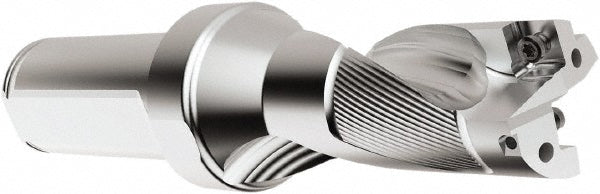

Indexable Drilling - Seco 03080712
MFR# 03080712Series SD522
$732.50List $822.95
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080712 indexable drilling. Series SD522.
Specifications
Body length2.6810
Collar diameter1.3780
Compatible drill styleSD522
Compatible insert size code0602; 050204
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length1.6970
Insert compatibilitySPGX0602; SCGX050204
Insert lock screwC02205-T07P; C02245-T07P
Insert size0.2500; 0.2190
Maximum drill depth in1-1/2
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter in3/4
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Overall length4.9310
Shank diameter in1
Shank length2.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
