Seco

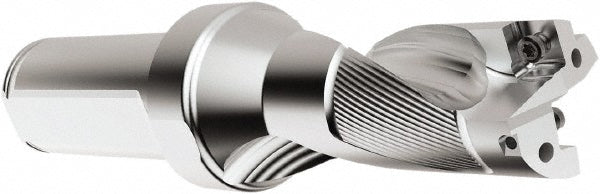

Indexable Drilling - Seco 03080715
MFR# 03080715Series SD522
$695.22List $794.88
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080715 indexable drilling. Series SD522.
Specifications
Body length2.8010
Collar diameter1.3780
Compatible drill styleSD522
Compatible insert size code0602; 060204
Compatible insert styleSPGX; SCGX
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length1.8170
Insert compatibilitySPGX0602; SCGX060204
Insert lock screwC02205-T07P
Insert size0.2500
Maximum drill depth1.6200
Maximum drill depth range1.0000 to 2.0000
Maximum drill diameter0.8520
Modular connection sizeR7
Neck diameter in1.3780
Number of drill inserts2
Overall length5.0510
Shank diameter in1
Shank length2.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
