Seco
Indexable Drilling - Seco 03080728
MFR# 03080728Series PerfoMAX
$778.34List $889.92
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

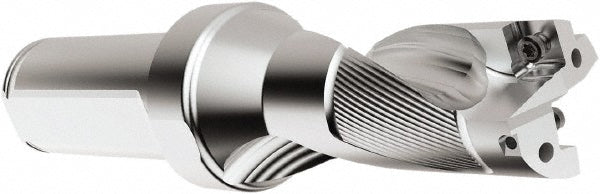

The Seco 03080728 indexable drilling. Series PerfoMAX.
Specifications
Body length83.85
Collar diameter (mm)42.00
Compatible drill styleSD522
Compatible insert size code070308; 0903
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter1.0620
Flute length (mm)54.05
Insert compatibilitySPGX0903..
Maximum drill depth (mm)53.85
Maximum drill depth range (mm)50.00 to 75.00
Maximum drill diameter (mm)27.49
Modular connection sizeR7
Neck diameter in1.6540
Number of drill inserts2
Shank diameter in1-1/4
Shank length2.3750
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
