Seco

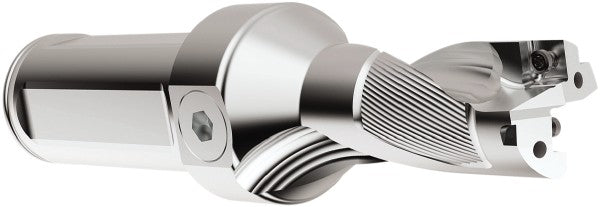

Indexable Drilling - Seco 03080734
MFR# 03080734Series PerfoMAX
$830.29List $949.32
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080734 indexable drilling. Series PerfoMAX.
Specifications
Body length98.50
Collar diameter (mm)50.00
Compatible drill styleSD522
Compatible insert size code09T308; 11T3
Compatible insert styleSCGX; SPGX
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Drill diameter in1-1/4
Flute length (mm)68.50
Insert compatibilitySPGX11T3..
Maximum drill depth in2-1/2
Maximum drill diameter in1-1/4
Modular connection sizeR7-C
Neck diameter in1.9690
Number of drill inserts2
Shank diameter in1-1/2
Shank length (mm)66.68
Shank typeStraight-Cylindrical
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
