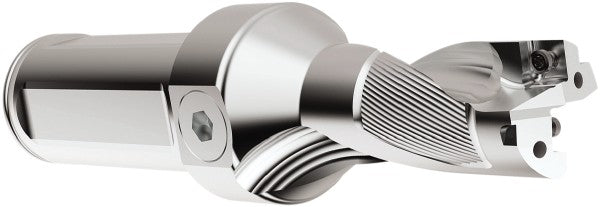

Indexable Drilling - Seco 03080742
MFR# 03080742Series SD522
$961.31List $1,080.00
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 03080742 indexable drilling. Series SD522.
Specifications
Body length4.3780
Body side coolant hole thread size in1/4
Collar diameter1.9690
Compatible drill styleSD522
Compatible insert size code12T3; 11T308
Compatible insert styleSPGX; SCGX
Coolant entry style code3- Axial Concentric & Radial
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2xD
Flute length3.1970
Insert compatibilitySPGX12T3; SCGX11T308
Insert lock screwC03508-T15P
Insert size0.5000; 0.4530
Maximum drill depth in3
Maximum drill depth range3.0000 to 4.0000
Maximum drill diameter in1-1/2
Modular connection sizeR7-C
Neck diameter in1.9690
Number of drill inserts2
Overall length7.1280
Shank diameter in1-1/2
Shank length2.7500
Shank typeFlatted; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
